Welcome to the Tools and More trailer brake section, here you can find information on our selection of trailer brakes, offered in both of our store locations. We carry a very large selection of both drum and disc brakes. We have drivetrain and brake parts for axles rated from 2000lb to 15,000lb with electric or hydraulic brakes.
Official dealers for Dexter, Lippert, UFP, and Kodiak. We also stock some retired or hard to find parts for Hayes Alko and Rockwell. For specific questions on parts please feel free to contact us.

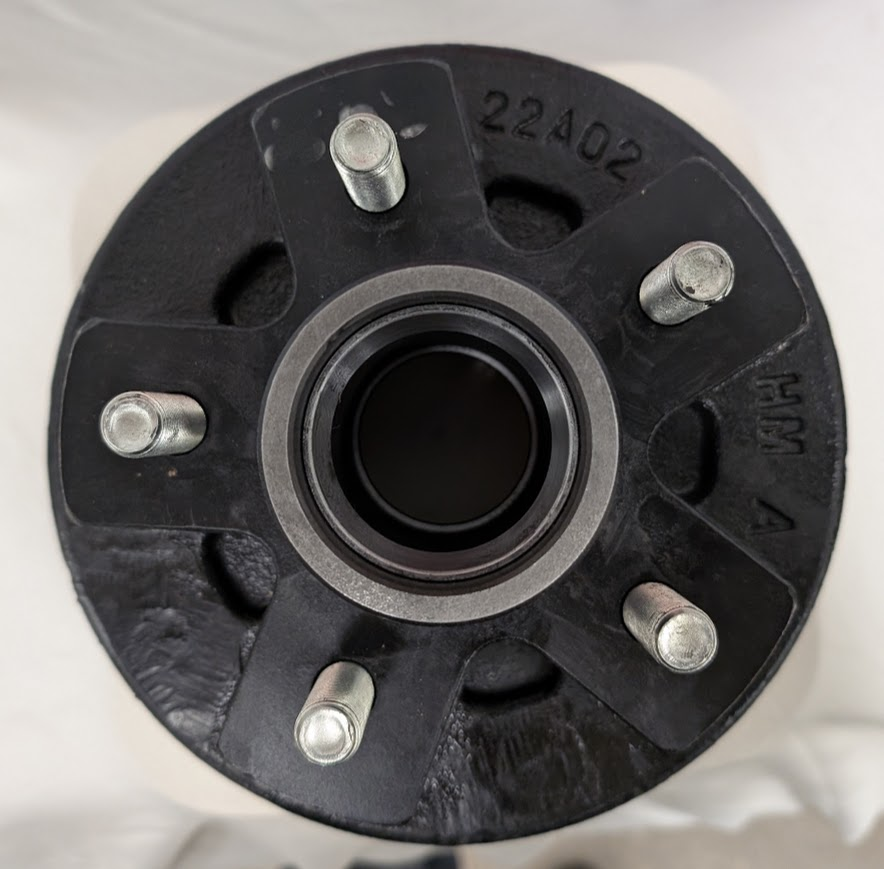

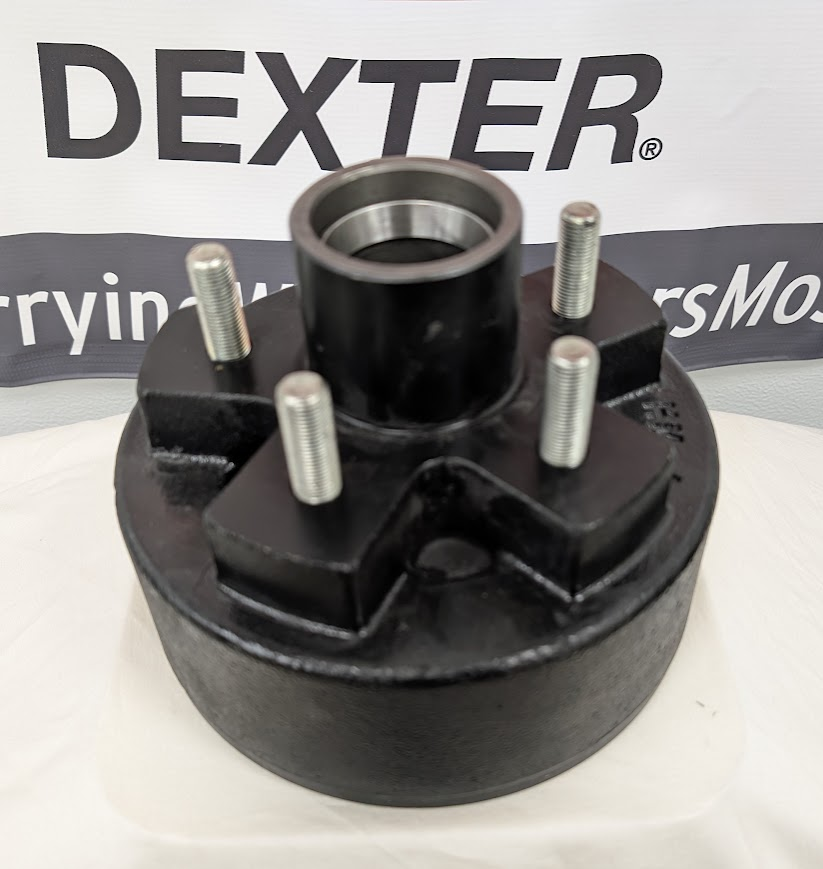

2000 lb Drum Brake
click on images to view larger
Size
Brand
Bearings
Studs
Center Cap
7" x 1.75"
Dexter
L44643 or L44649
1/2"
1.1986
The 2000 lb Drum we carry is imported and can be used with either electric or hydraulic brakes.

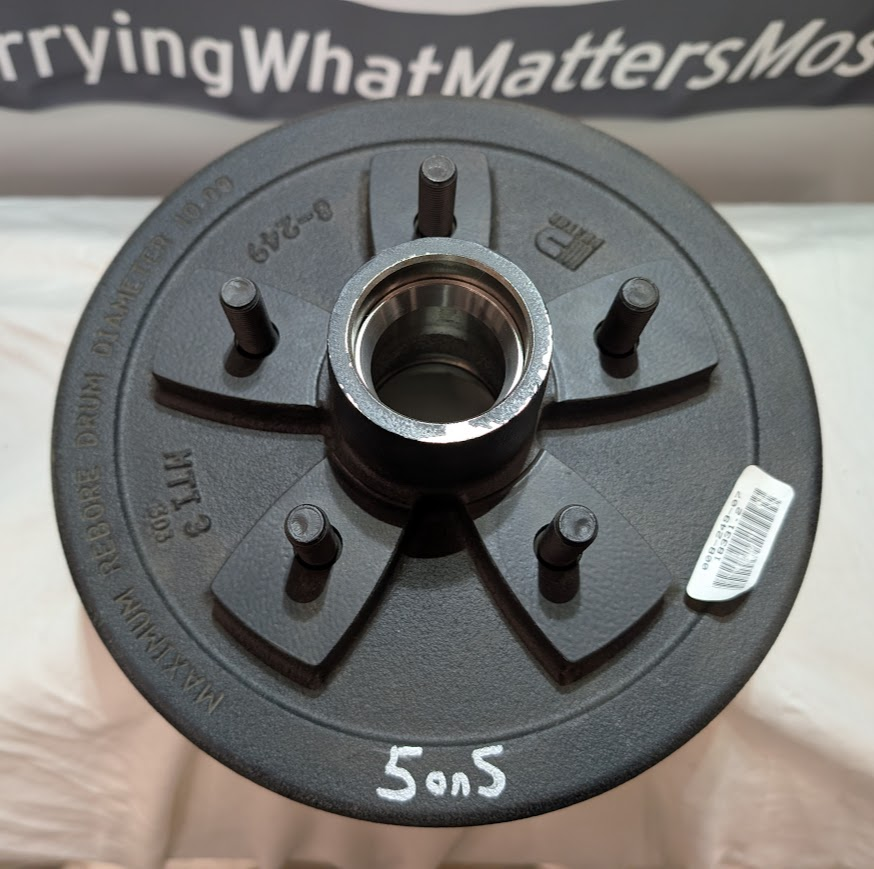

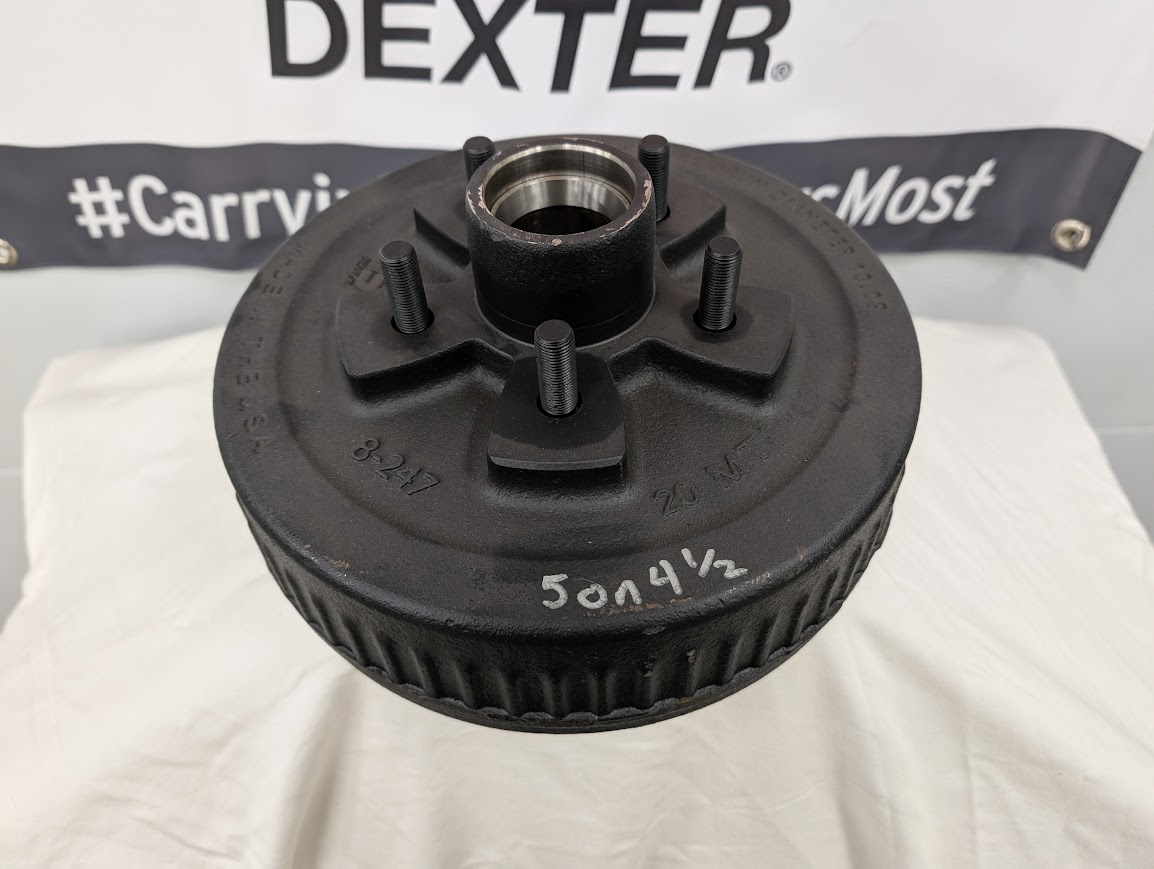

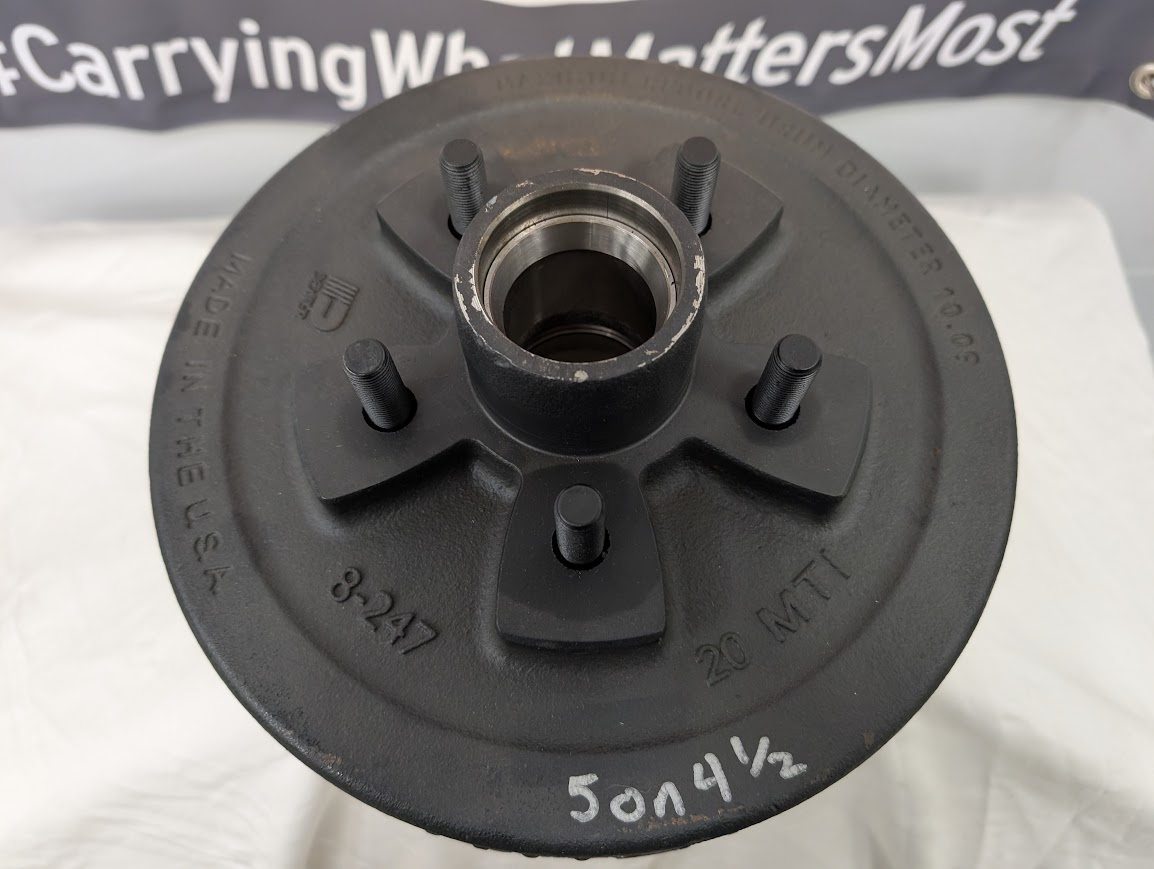

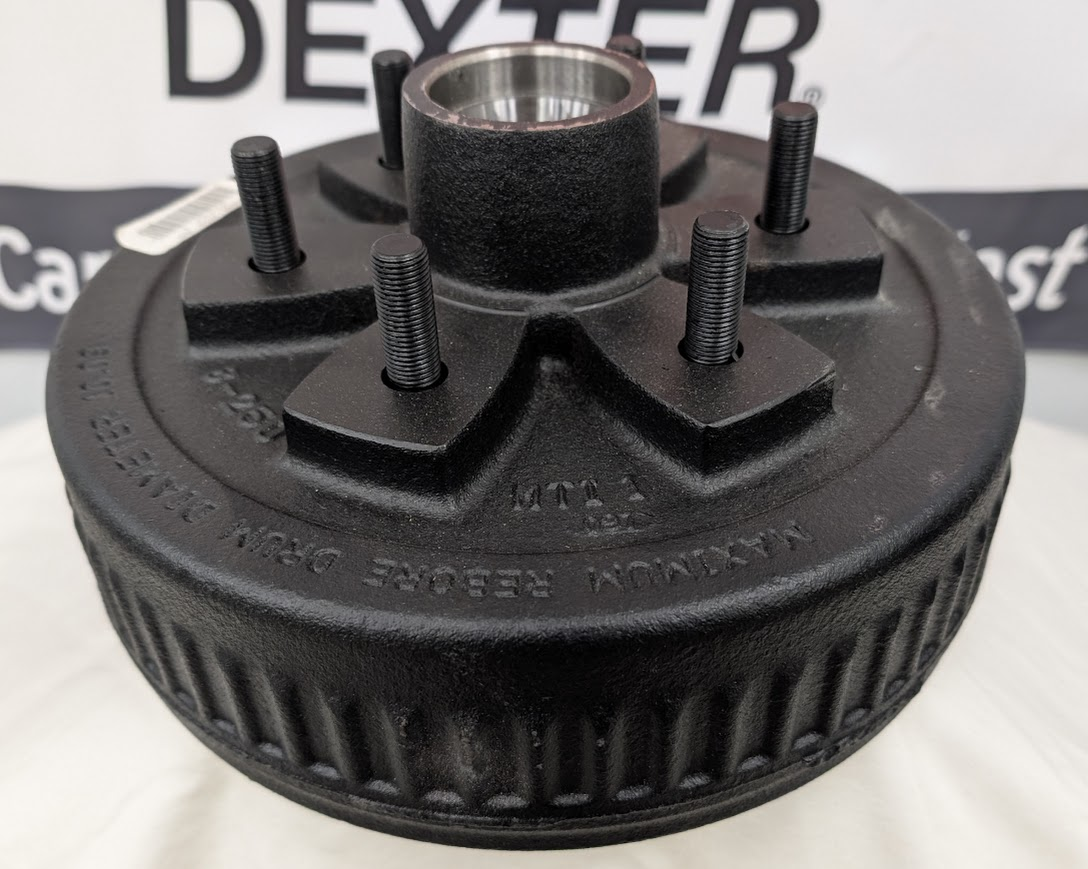

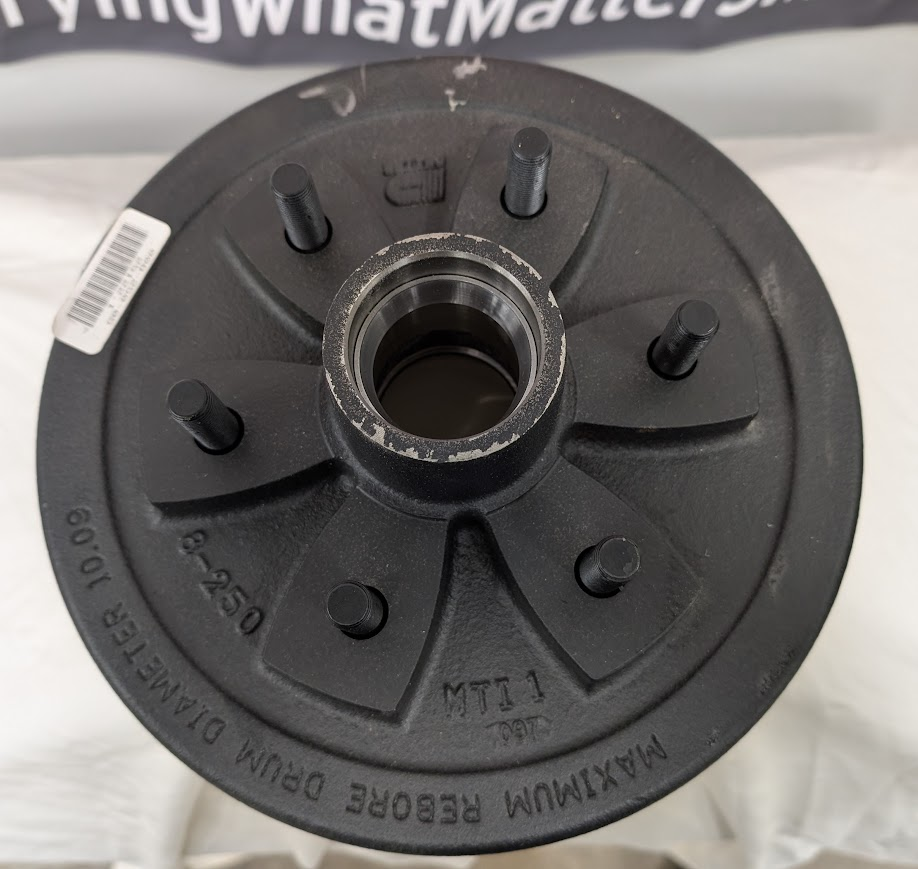

3500 lb Drum Brakes
5 on 4.5 bolt pattern below

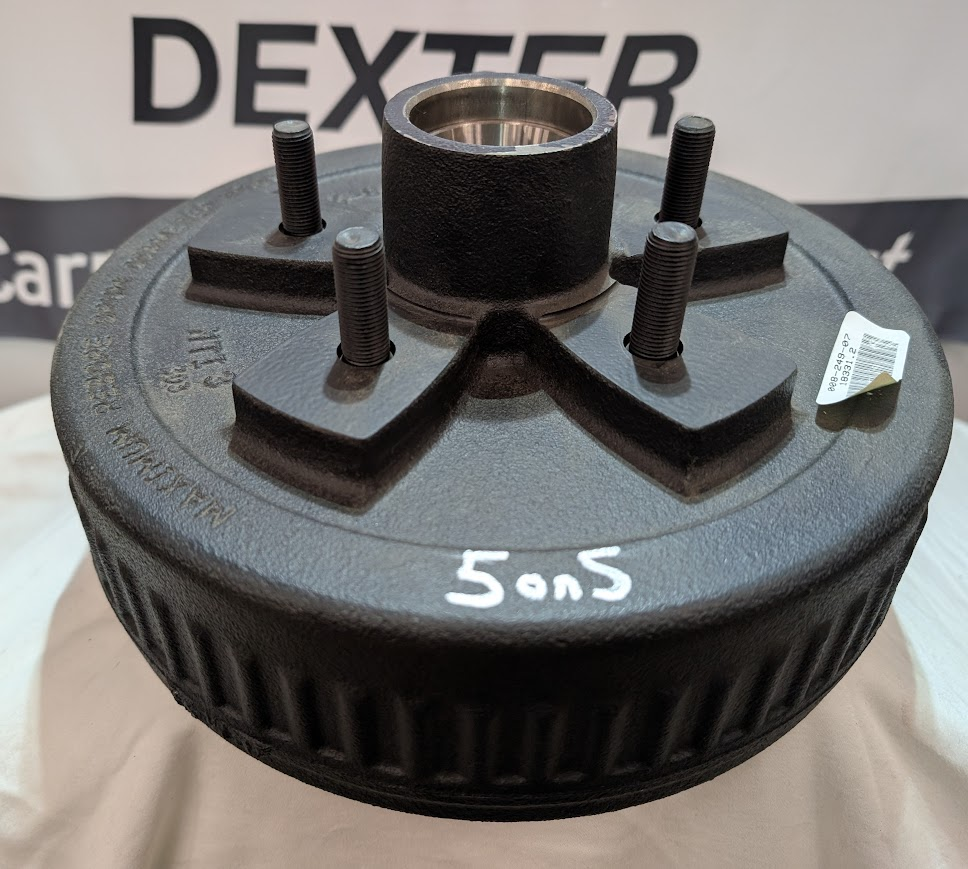

5 on 5 bolt pattern below
6 on 5.5 bolt pattern
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
10" x 2.25"
5 on 4.5, 5 on 5, and 6 on 5.5
Dexter
L44649 or L68149
1/2"
1.1986
Available in 5 on 4.5, 5 on 5 and 6 bolt (6 on 5.5) bolt patterns. All of the 3500 lb drums we offer are from Dexter trailer parts. Should fit most 3500 lb axles. These drums can be used for electric or hydraulic brakes.

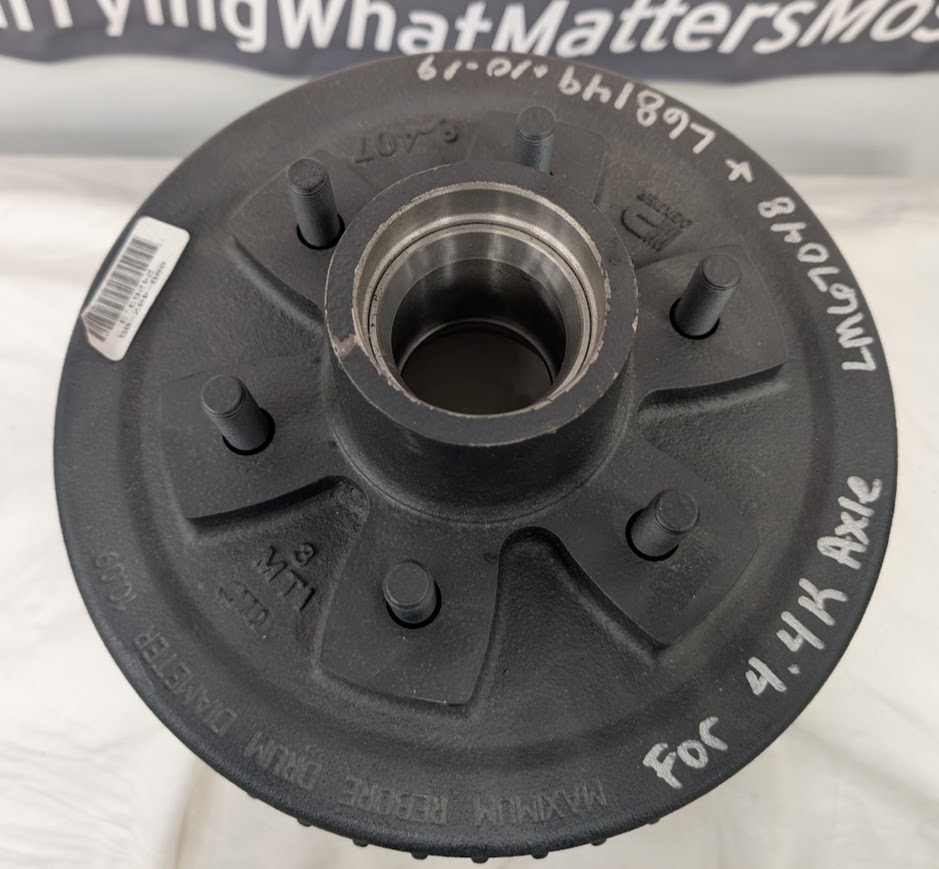

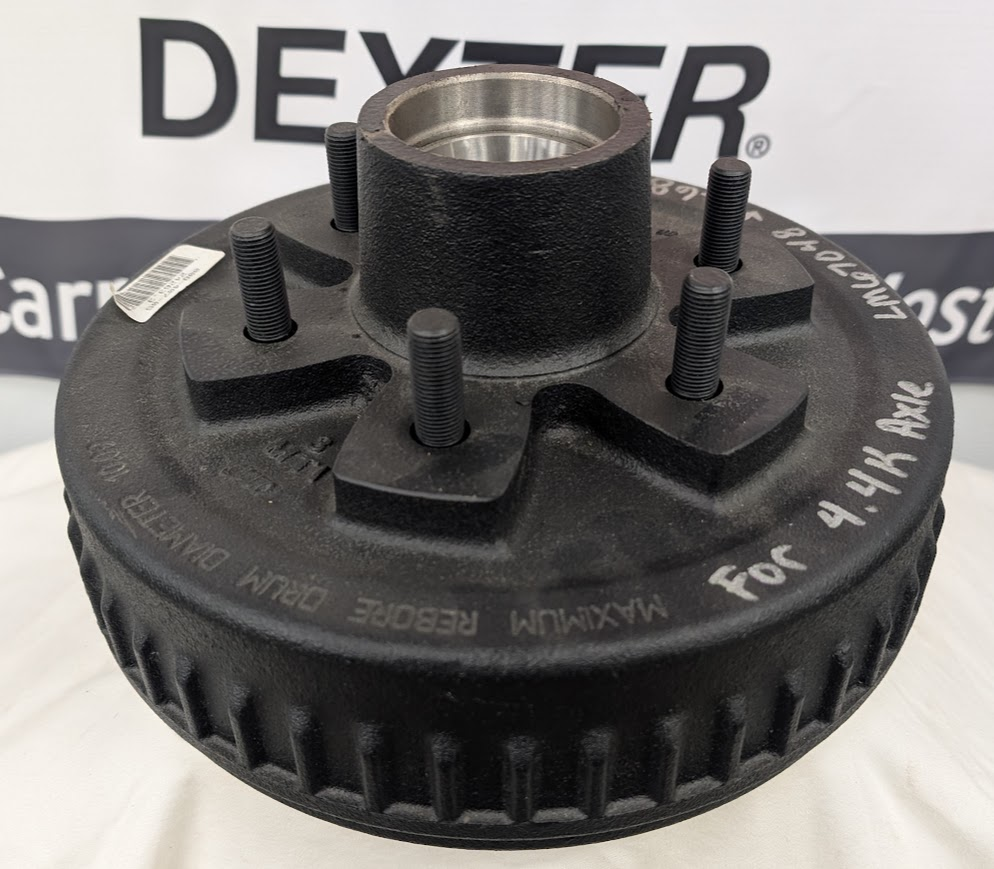

4400 lb Drum Brake
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
10" x 2.25"
6 on 5.5"
Dexter
L68149 or LM67048
1/2"
2.440
Manufactured by Dexter to fit Dexter 4400 lb axles. Designed for electric brakes.

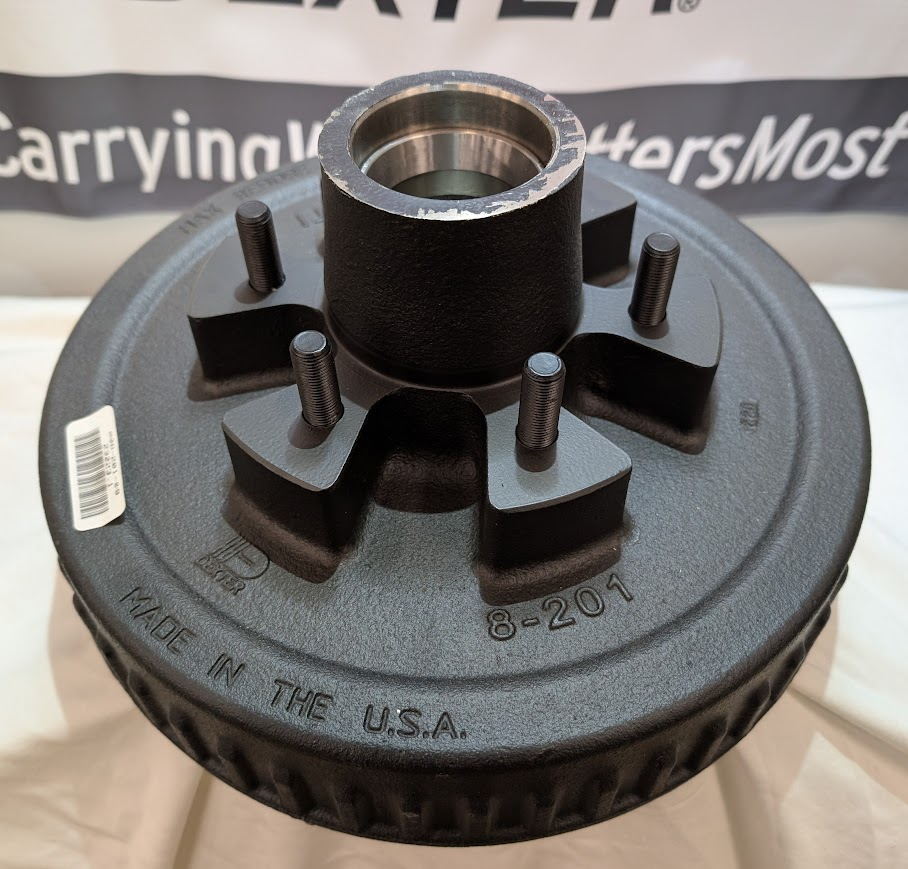

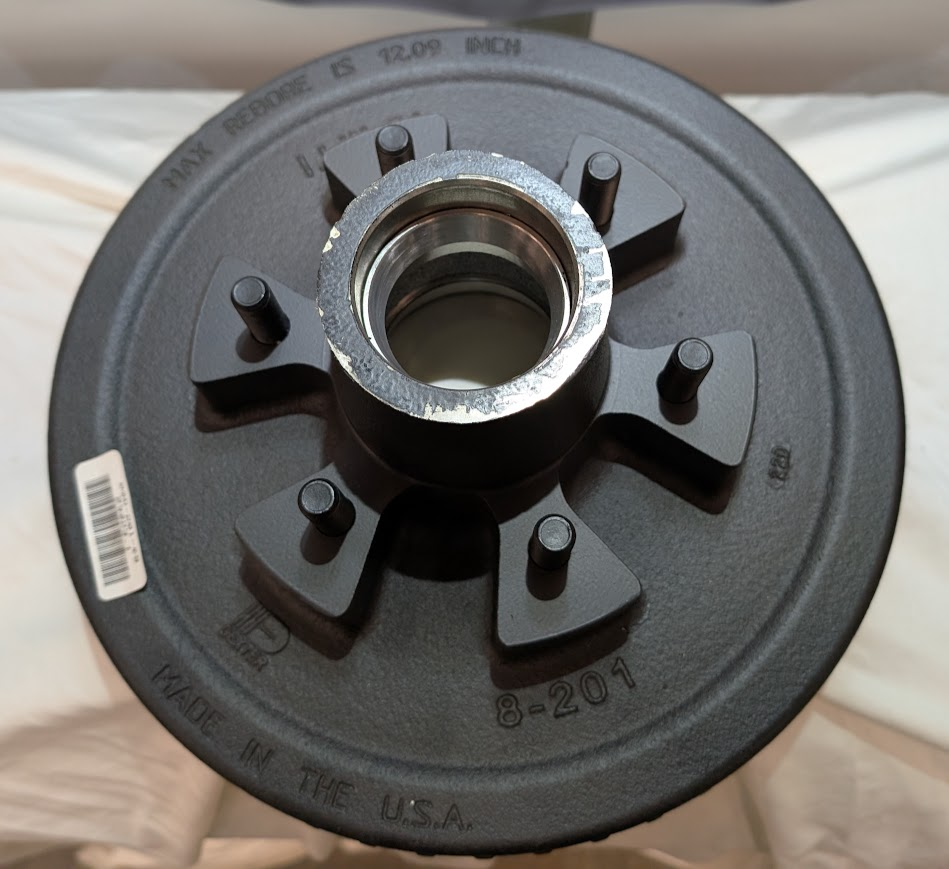

5200 lb - 6000 lb Drum Brake
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
12"x2"
6 on 5.5"
Dexter
may vary (see below)
1/2"
2.440
Manufactured by Dexter to fit 5200 lb and 6000 lb axles. Should fit most axles in these weight classes. Designed for Electric or hydraulic brakes. Bearing combinations for these axle weights may vary 5200lb Bearings could be 25580 and LM670486000lb Bearings could be 25580 and 15123
There maybe other bearing combinations please bring us your old bearings to make sure you get the correct parts you are looking for.

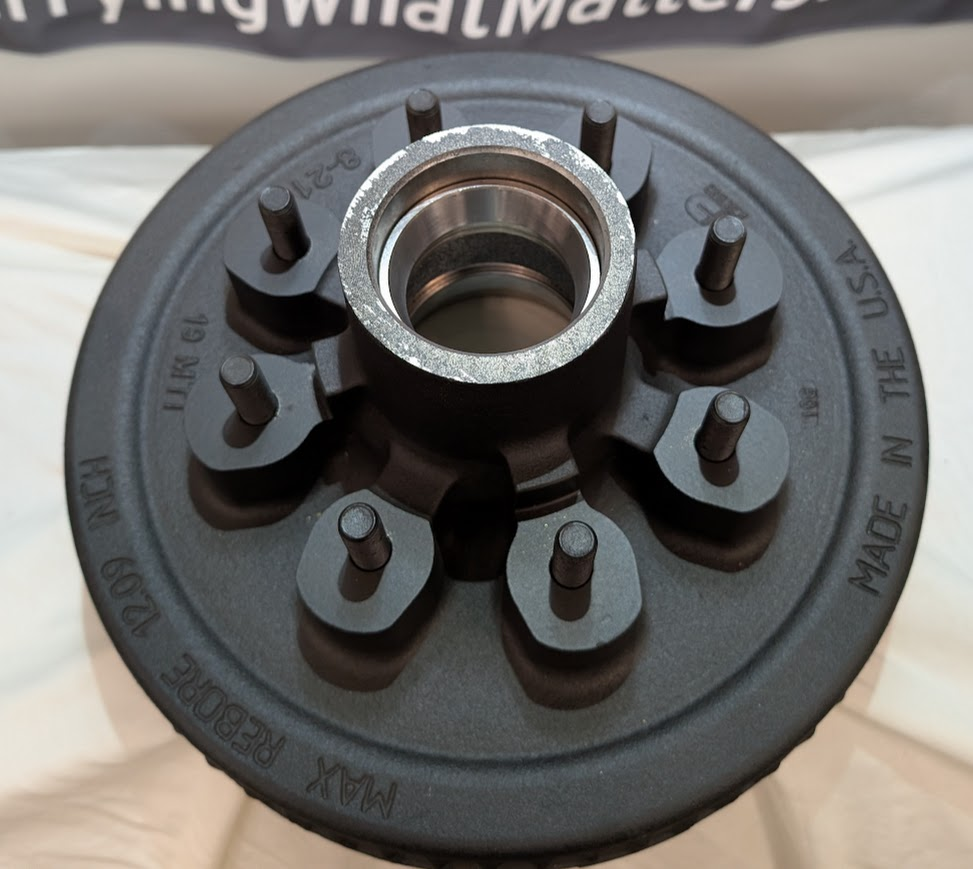

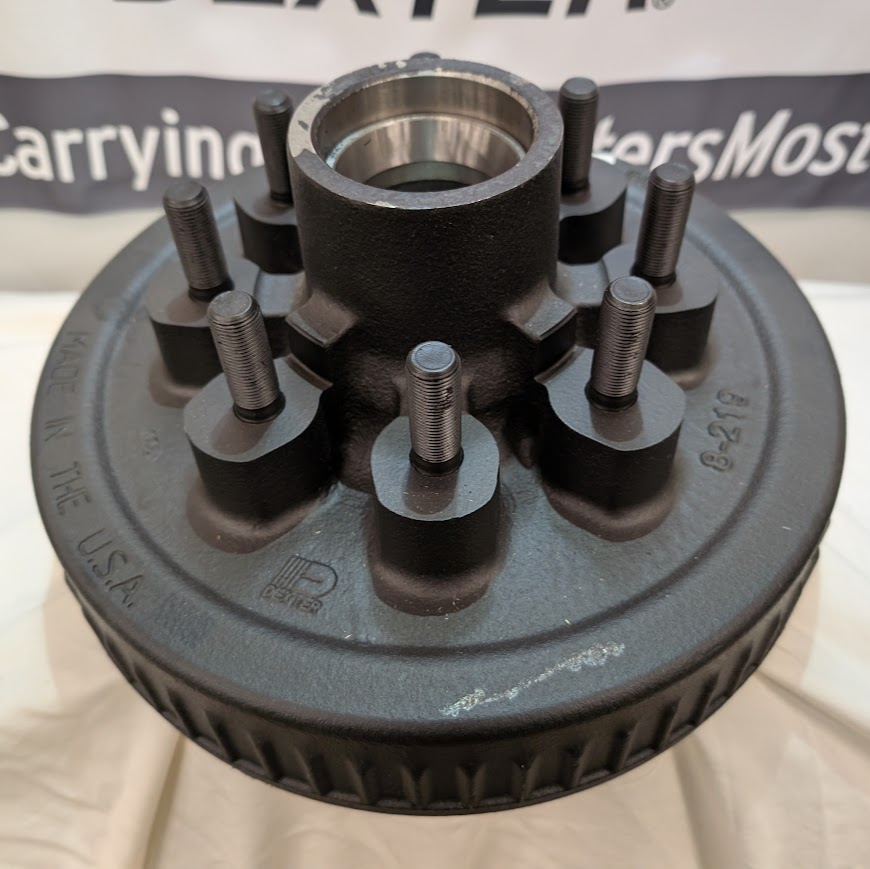

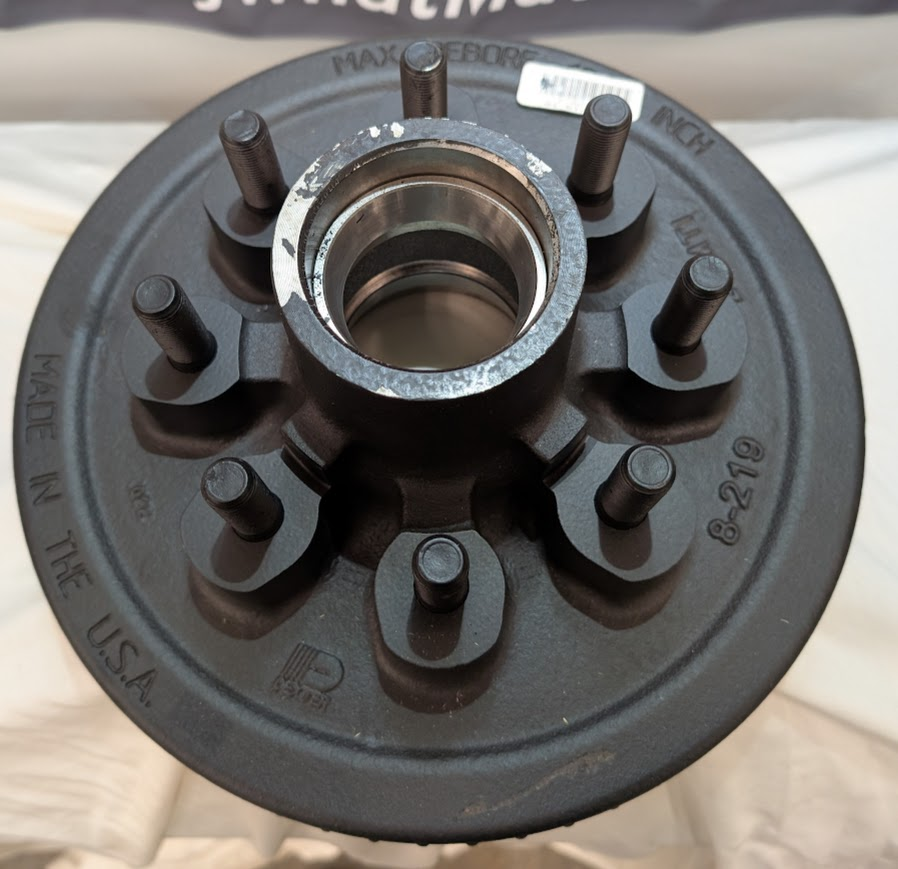

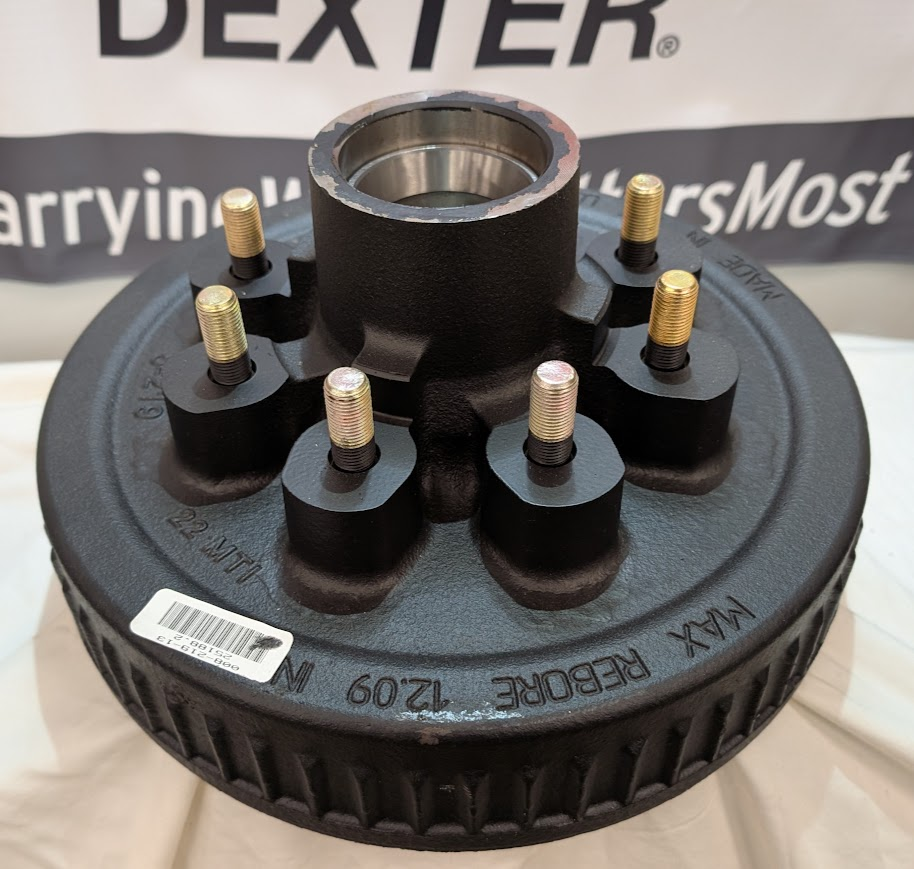

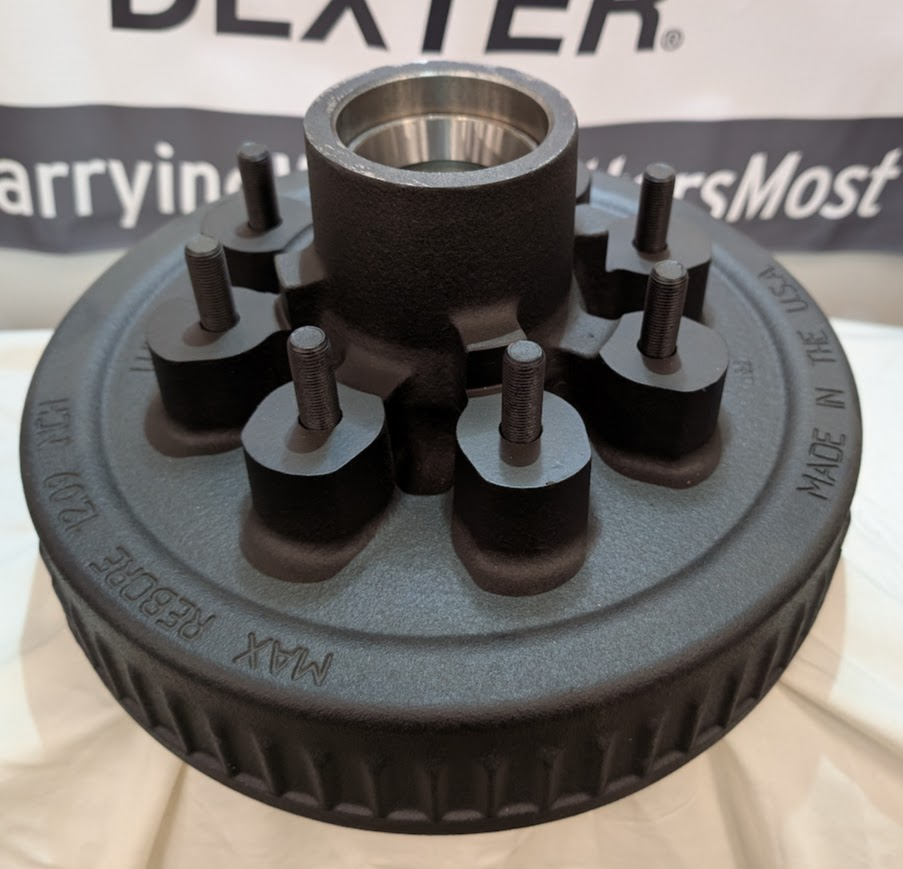

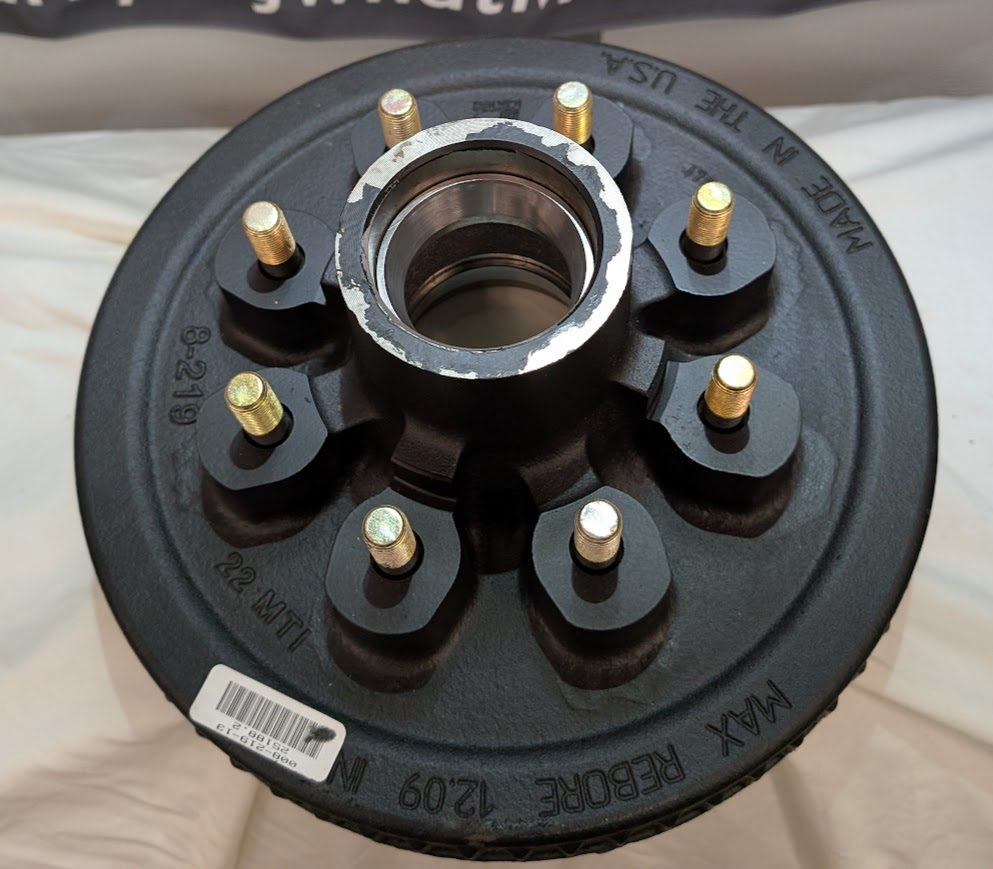

7000 lb Drum Brake
1/2" Studs Pictured Below
9/16" Studs Pictured Below
5/8" Studs Pictured Below
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
12"x2"
8 on 6.5"
Dexter
25580 or 14125A
1/2" Studs, 9/16" Studs and 5/8" Studs
2.720
Manufactured by Dexter to fit 7000 lb axles. Should fit most axles in this weight class. Designed for electric or hydraulic brakes. Available in Grease hub and oil bath (not pictured.)

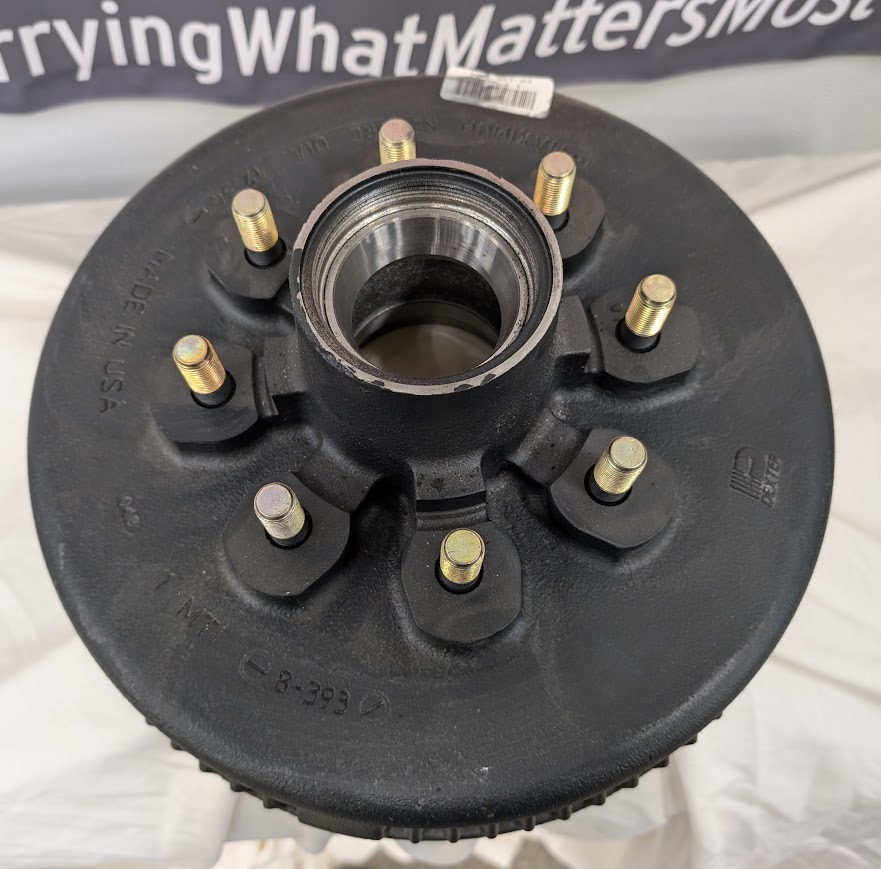

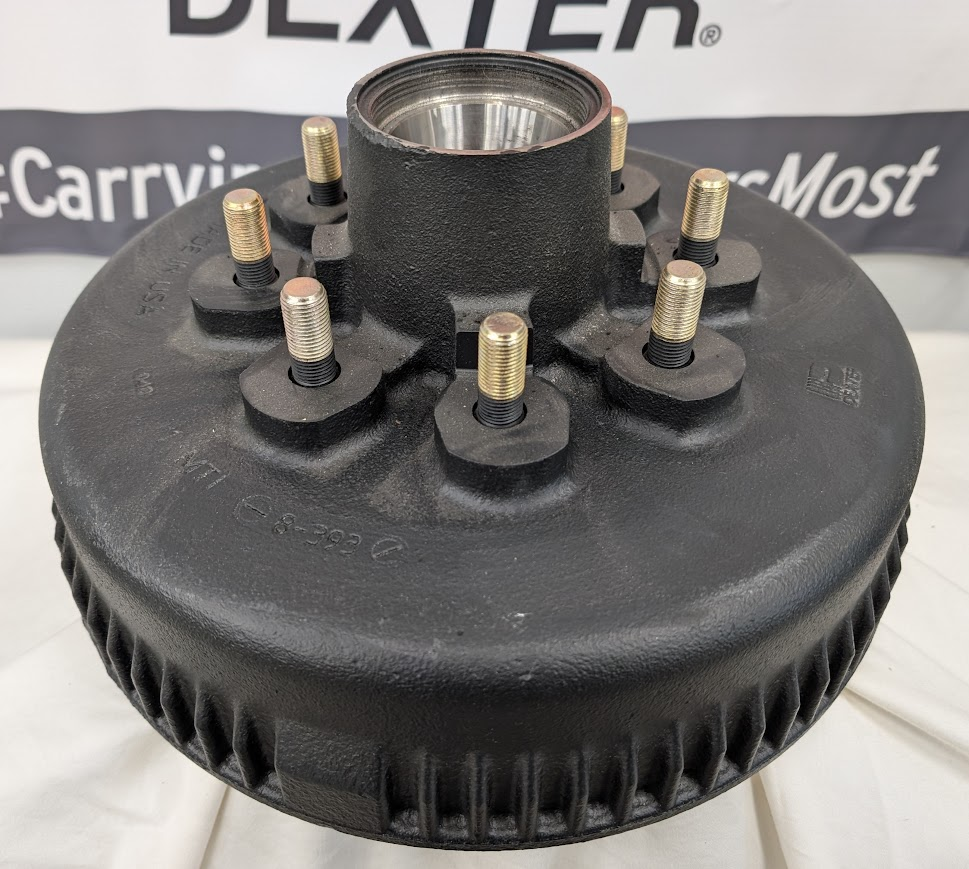

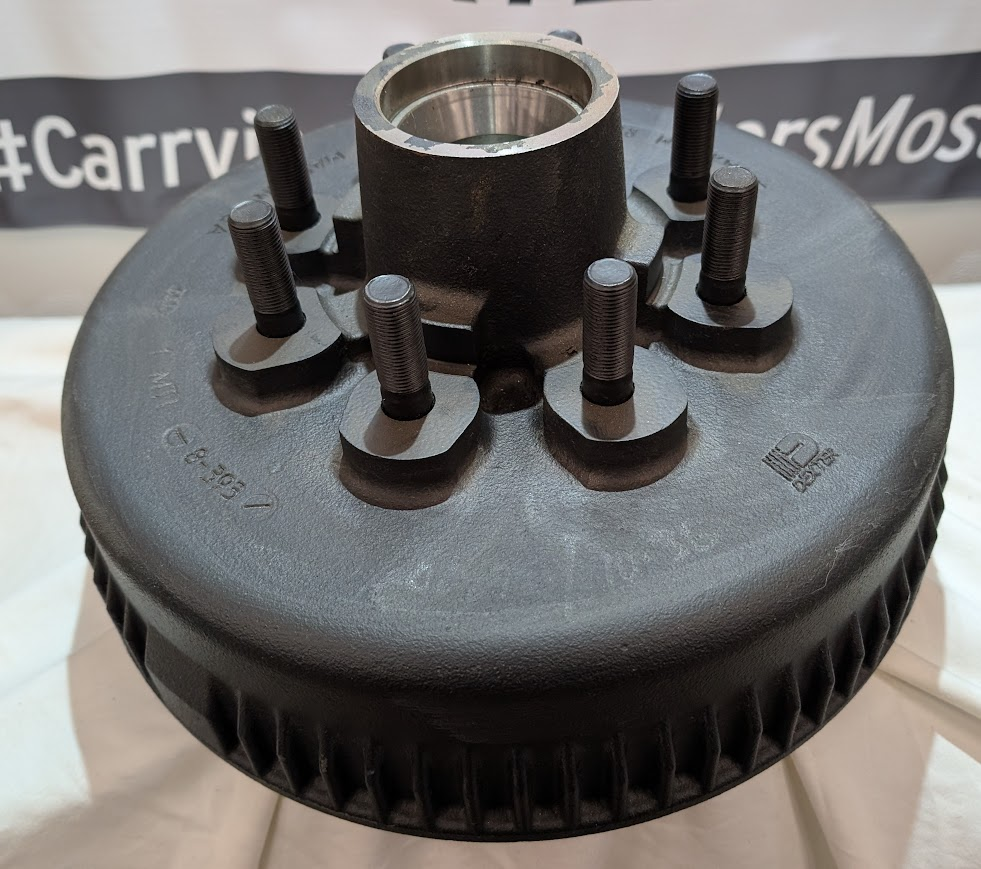

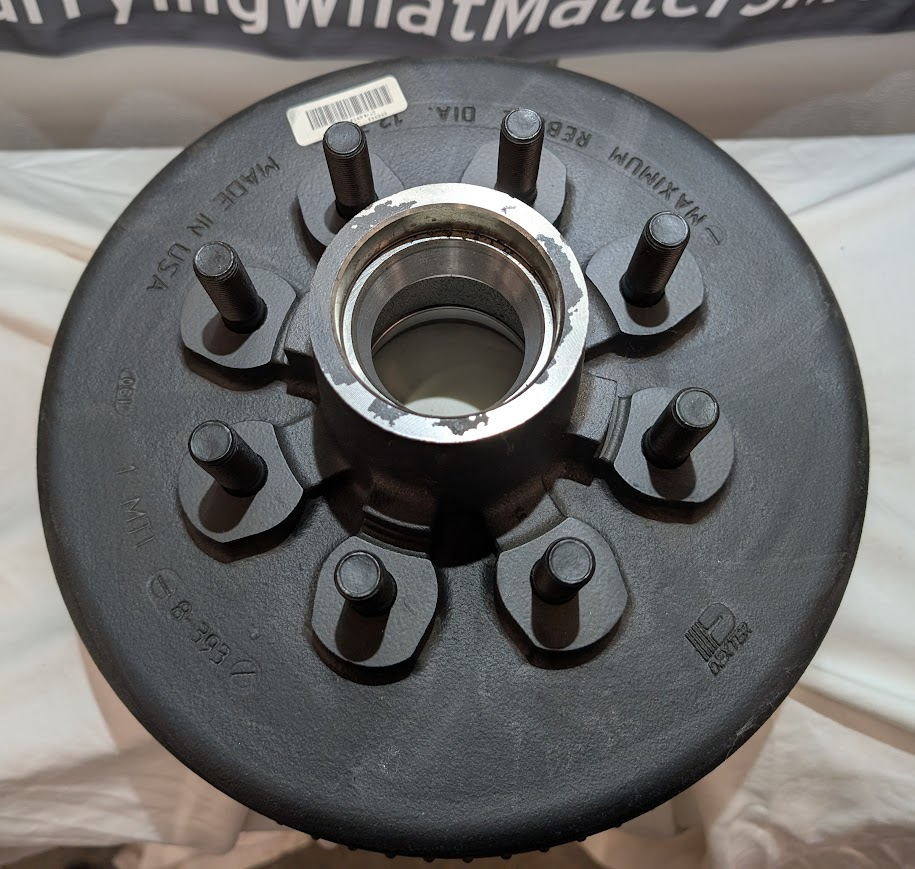

Dexter 7200 lb or 8000 lb Narrow Drum Brakes
9/16" Stud Pictured Below
5/8" Stud Pictured Below
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
12.25" x 2.5"
8 on 6.5"
Dexter
25580 and 02475
9/16" Studs and 5/8" Studs
2.720
Manufactured to fit Dexter 7200 lb and 8000 lb Narrow axles ONLY. Available in Grease E-Z Lube and Oil bath. Uses 2.720 Center Cap E-Z Lube or 21-35 Oil Cap or K21-303-00 Dexter Fortress Cap.

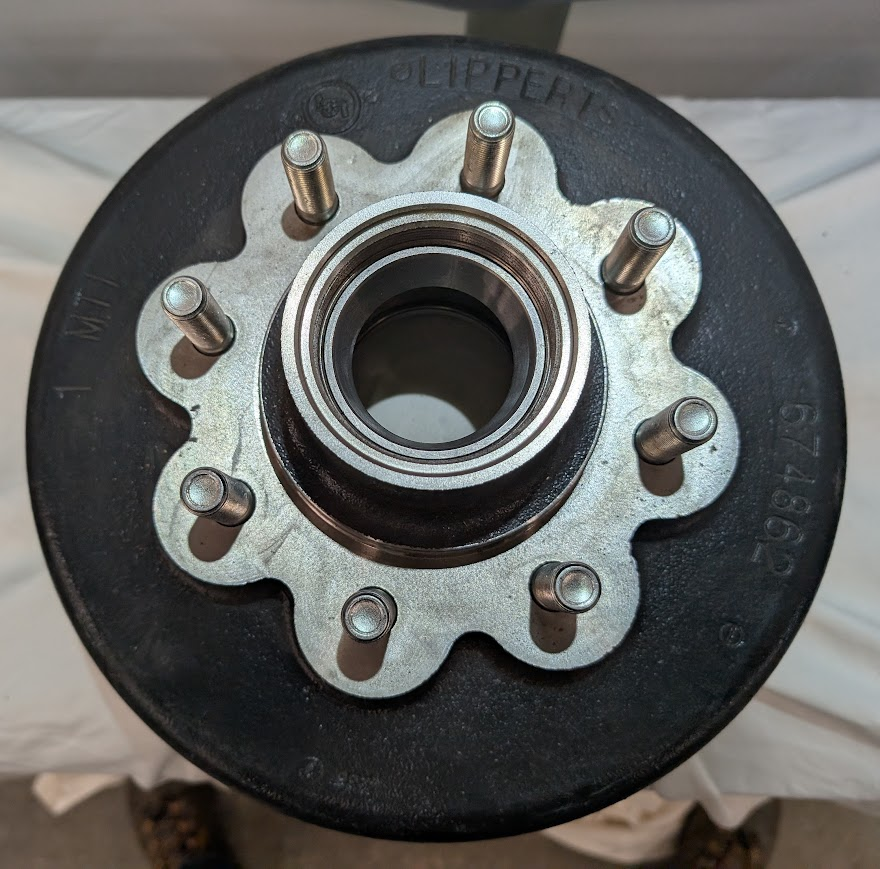

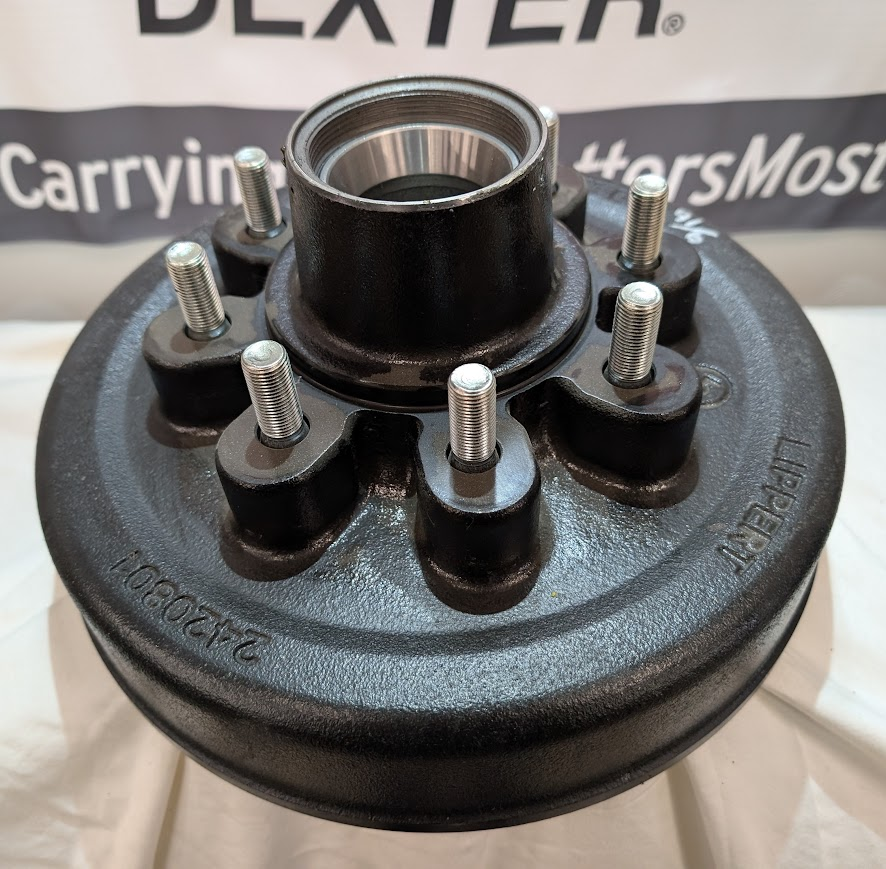

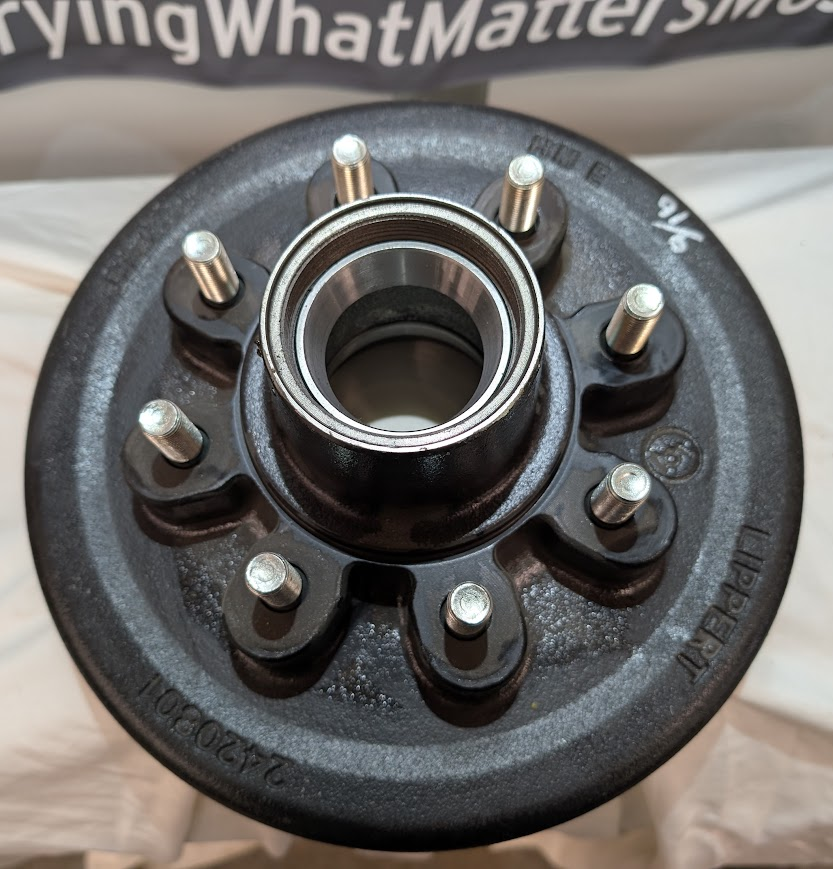

Lippert 8000 lb Hybrid Drum Brakes
9/16" Stud Pictured Below
5/8" Stud Pictured Below
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
12" x 2"
8 on 6.5"
Lippert
25580 and 02475
9/16" Studs and 5/8" Studs
Lippert 8k Plastic or Aluminum oil cap.
Manufactured for Lippert 8000 lb Hybrid axles ONLY. Available in Oil Bath.

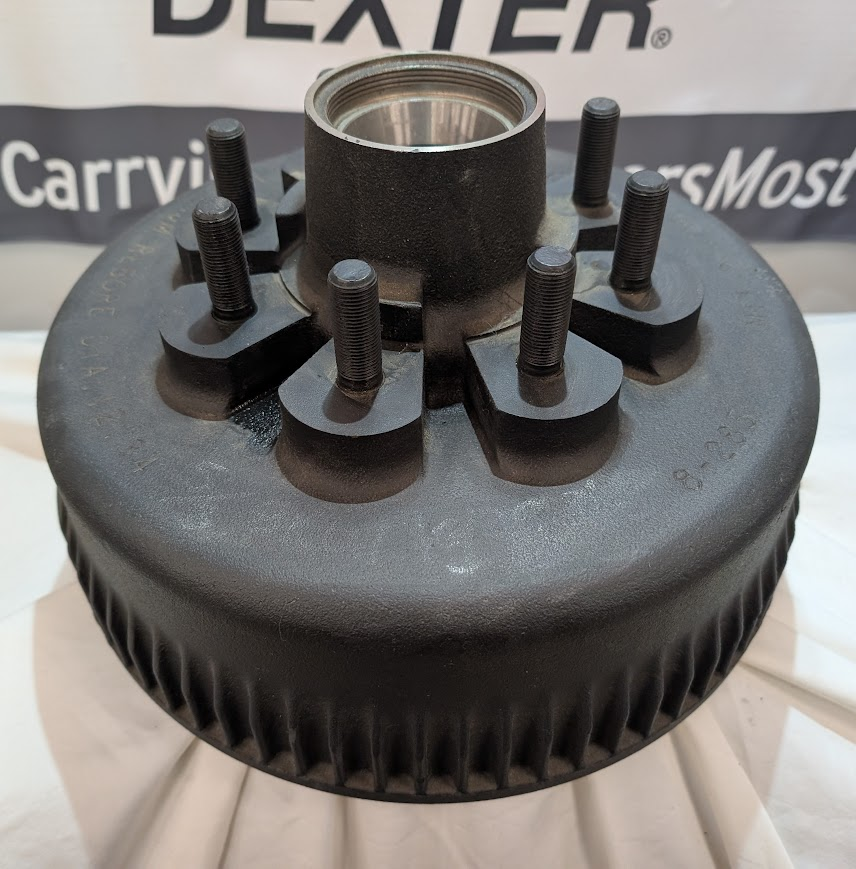

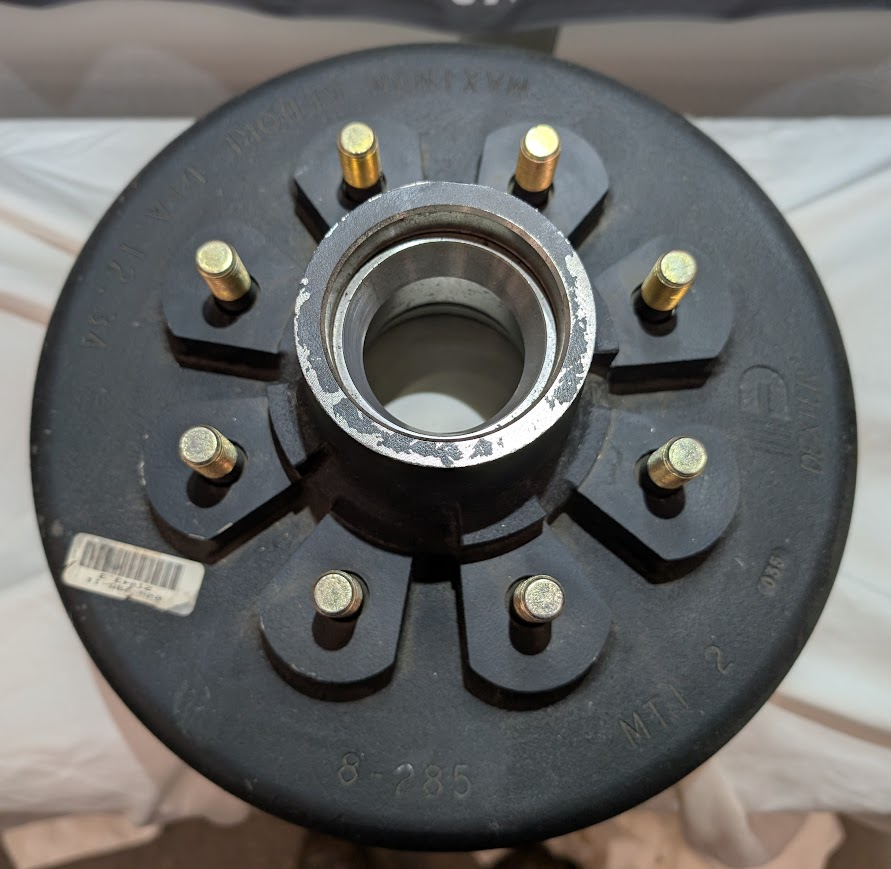

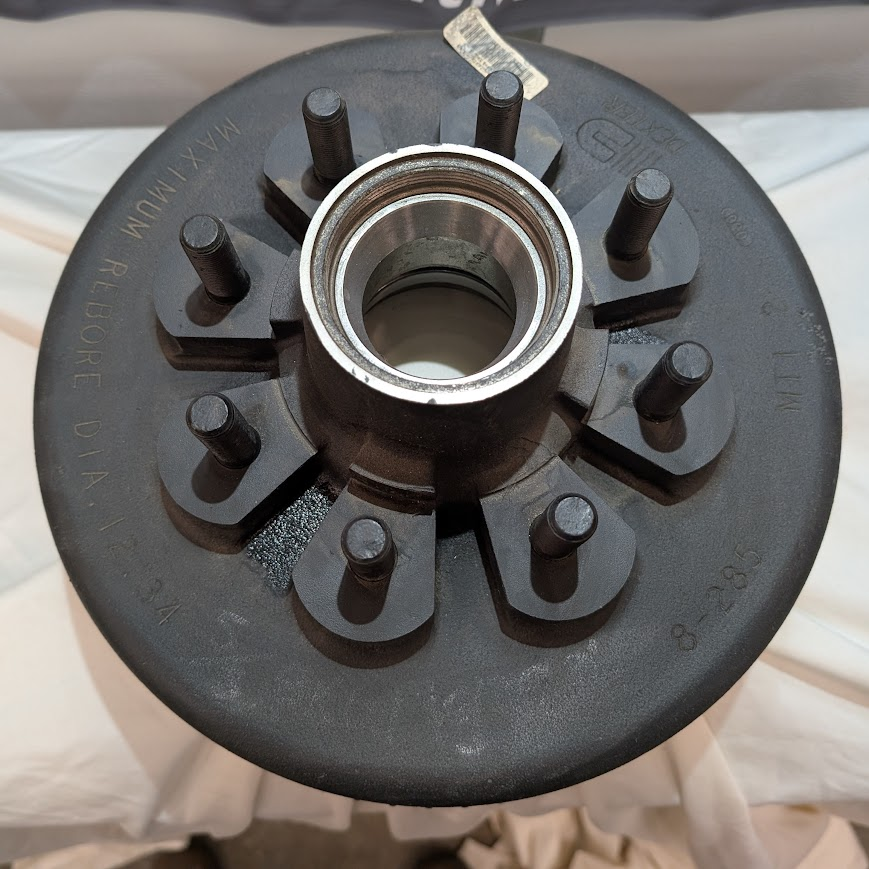

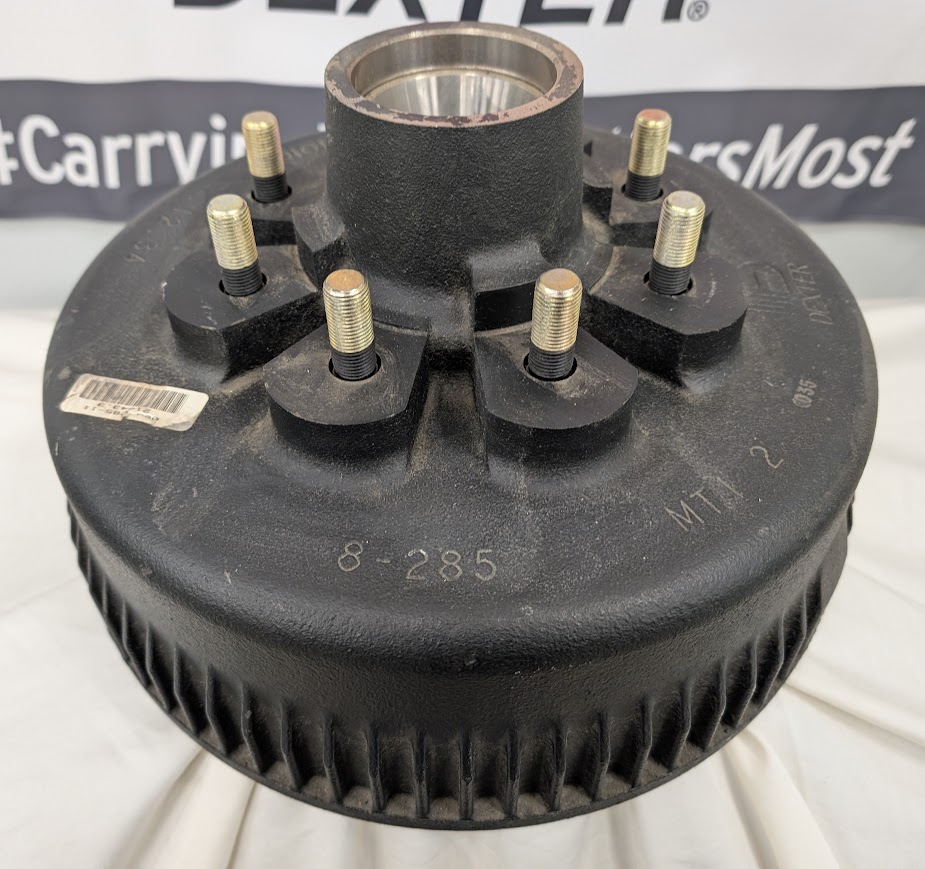

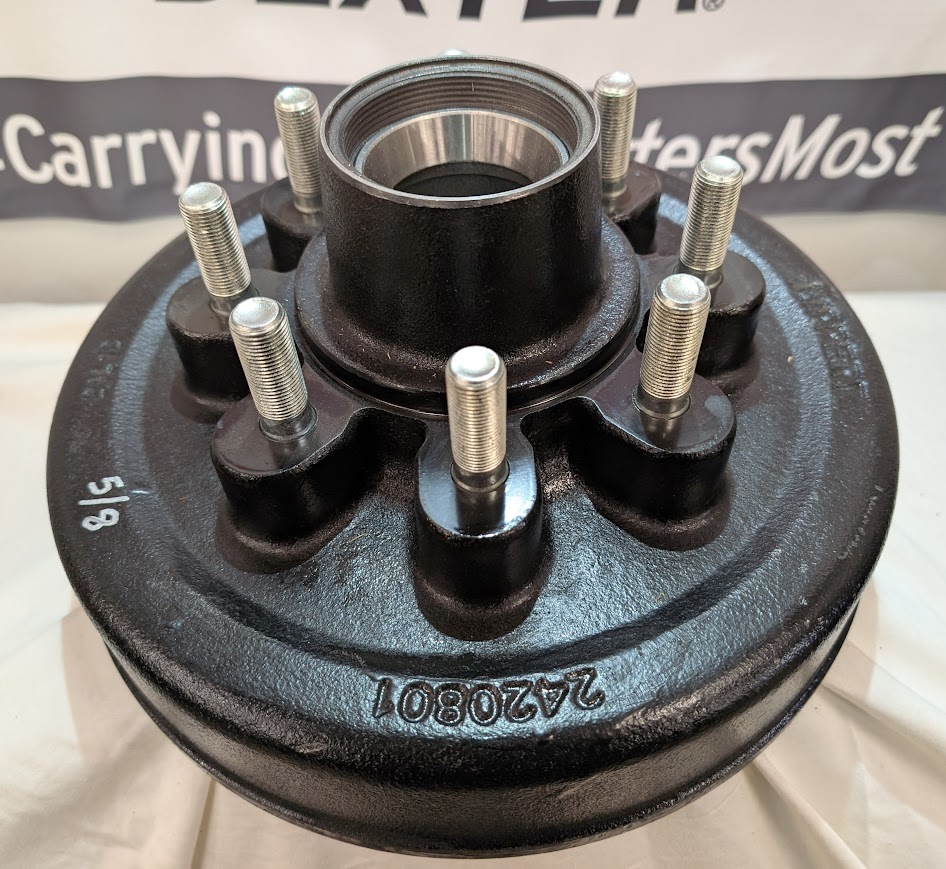

#8-285 Dexter 8000 lb Drum Brakes
9/16" Stud Pictured Below (Grease)
5/8" Stud Pictured Below (Oil Bath)
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
12 1/4" x 3 3/8"
8 on 6.5"
Dexter
25580 and 02475
9/16" Studs and 5/8" Studs
2.720
8-285 Manufactured by Dexter. Made to fit Dexter 8000 lb axles. Designed for Electric Brakes. Available in Grease E-Z Lube and Oil Bath. Uses 2.720 E-Z Lube Center Cap or 21-35 Oil Cap or K21-303-00 Dexter Fortress Cap.

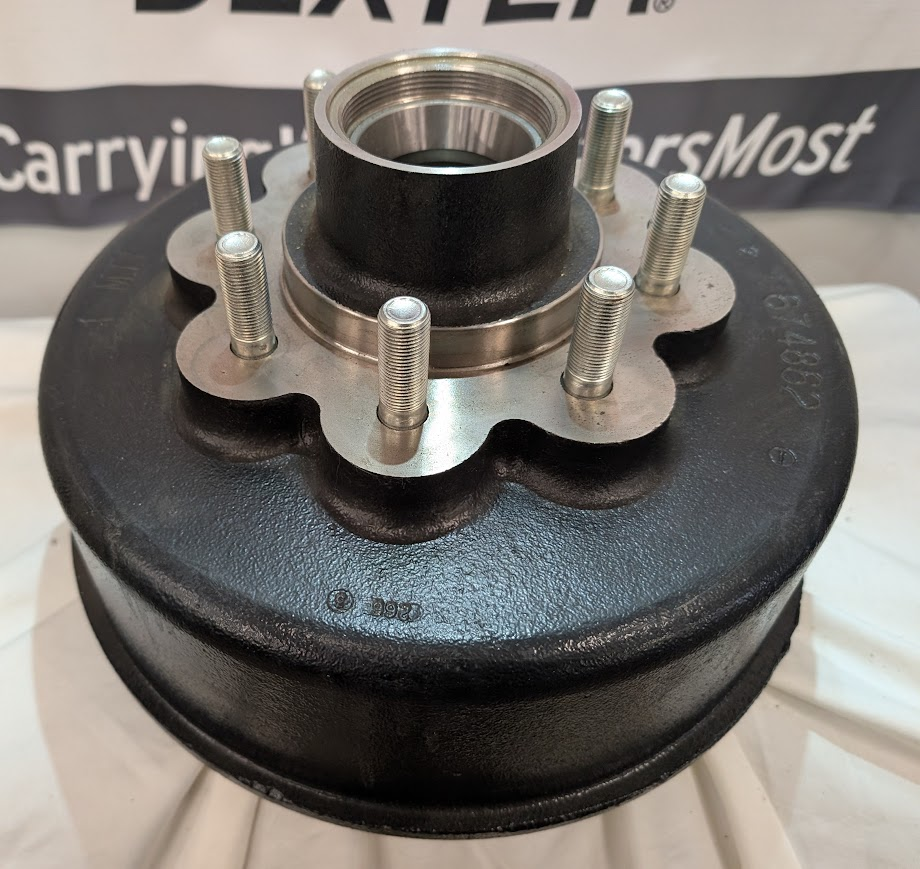

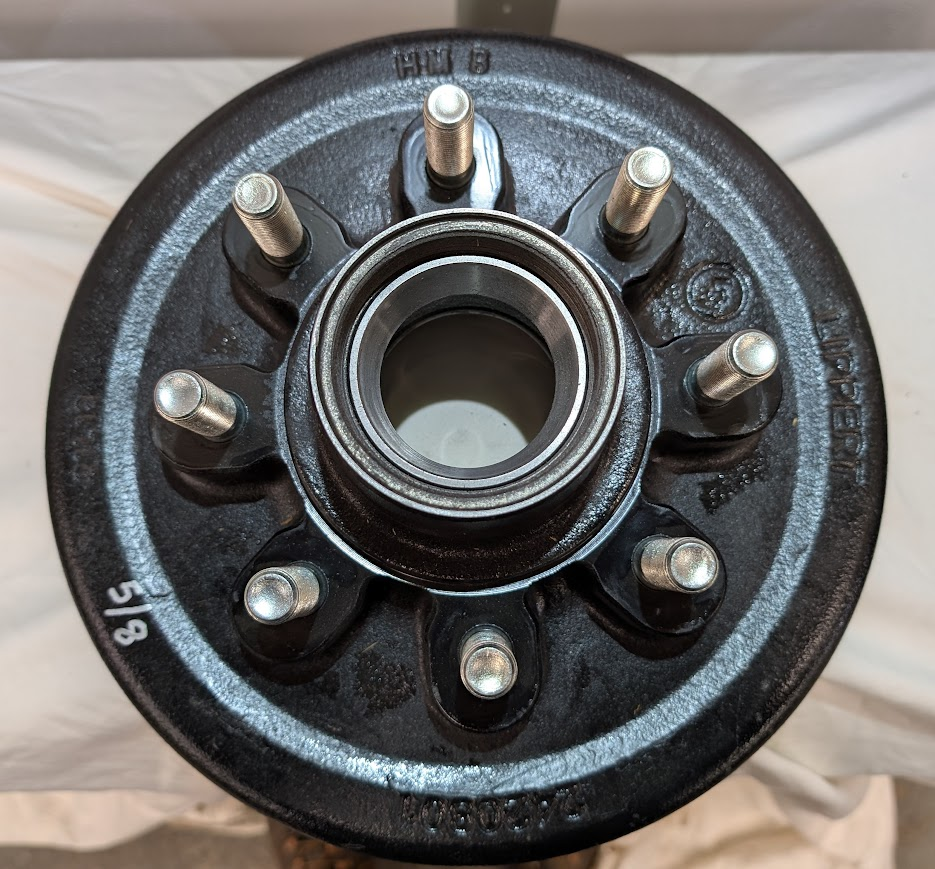

#23A03 Lippert 8000 lb Drum Brakes
click on images to view larger
Size
Bolt Pattern
Brand
Bearings
Studs
Center Cap
12 1/4" x 3 3/8"
8 on 6.5"
Lippert
25580 and 02475
5/8"
Lippert 8k Plastic or Aluminum oil cap.
Made to fit Lippert 8000lb axles. Designed for Electric Brakes. Available in Oil Bath.
For specific questions on parts please feel free to contact us.
